Technical details
drive-thru window AL30204PVG

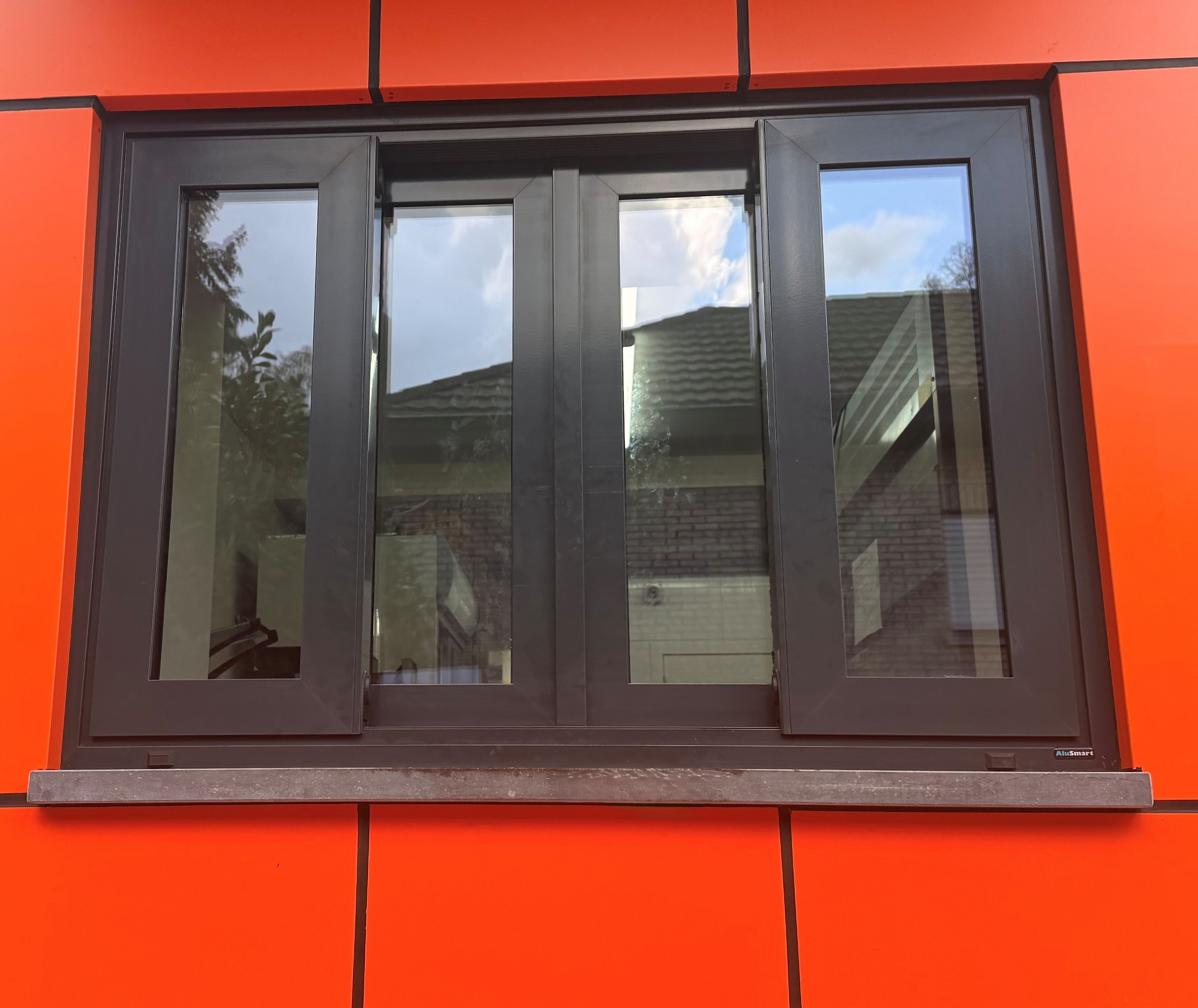

Drive-thru window details
Description
Heavy duty 4-part sliding window with 1 active and 1 semi-automatic sliding wing
Standard glazing
4 pieces HR++ laminated clear insulating glass with 1.0 coating and black TGI spacer
Standard delivery includes:
One-hand operation with semi-automatic opening passive sliding windows
2 hook locks equipped with 1x knob cylinder / 1x euro cylinder
sliding windows equipped with anti-tilt system
per window 2 stainless steel ball-bearing tandem wheels in combination with stainless steel running rail
evening & night blocking with limited opening of the counter
Sealed top and bottom sill between the fixed windows to prevent dirt particles
Burglar-resistant glazing bars
Coated in Ral colour 7016 (anthracite grey) – 7022 (umbra grey) – 9005 (jet black)
Insulation values
Glazing HR++ insulating glass with 1.0 coating: Ug- value 1.0
Drive-thru window in combination with glazing and TGI spacer PSI 0.039: Uw- value 2.9
Surface treatment
Coated in standard Ral colour or structured paint in sea-side quality, thickness minimum 60μm according to the QUALICOAT label

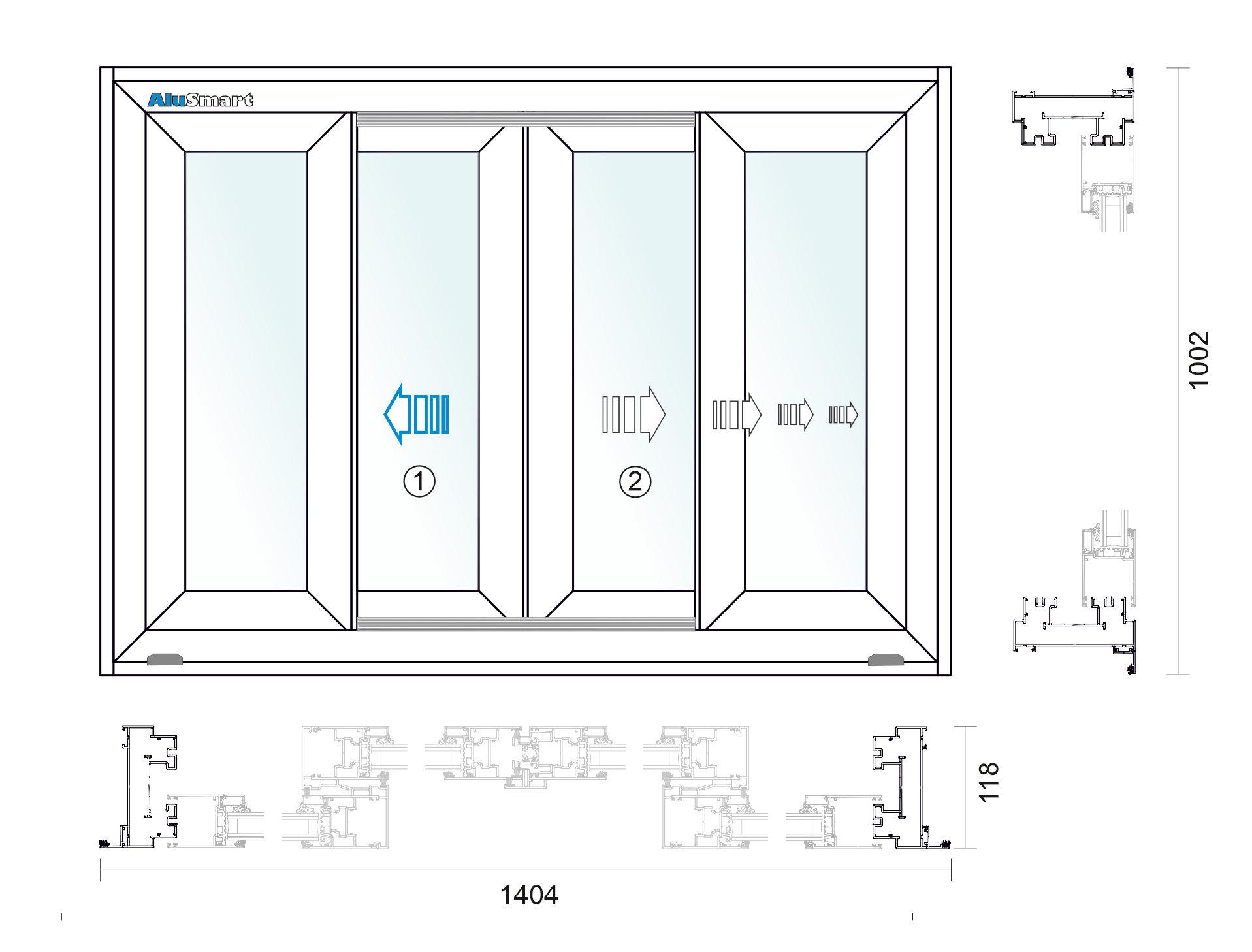

Measurements
|
||
|
||
|
||
|
||
|
Norms and values
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
Technique
Semi-automatic opening passive windows: own Alusmart system
Built-in anti-tilt system sliding windows
Options
Different dimensions (where possible)
RAL colour or textured paint of your choice
Sun protection glazing 71/39, LTA 71 (light transmission) / ZTA 39 (sun transmission)
Tinted glazing grey, bronze, and green (in the mass coloured single glass)
Complete set electro-mechanical lock including power supply 24V with contactless operation
